Statistics Page ​

What is the Statistics Page? ​

The Statistics page in TerraFuse gives managers a clear picture of how charging stations are being used.
Think of it as a dashboard that shows usage, energy, downtime, money earned, and charging time.

It helps you answer simple questions like:

  • How often are the stations being used?
  • How much electricity is being consumed?
  • When are stations sitting idle?
  • How much revenue is being generated?
  • What are the busiest months?
  • Go to the sidebar and click Statistics (it will be highlighted in green when selected).
  • By default, you’ll see usage data for one charging station.
  • The chart shows data by months (e.g. January–August 2025) or total for the selected time period.

Main Controls ​

  • Export – Download the data as a file.
  • Reset Filters – Clear your selections and go back to the default view.
  • Months / Total – Switch between seeing data month-by-month or as a total.
  • Refresh – Updates the chart with the latest information.

The Five Views ​

At the top of the page, you can switch between five different types of data:

1. Consumption (kWh) ​

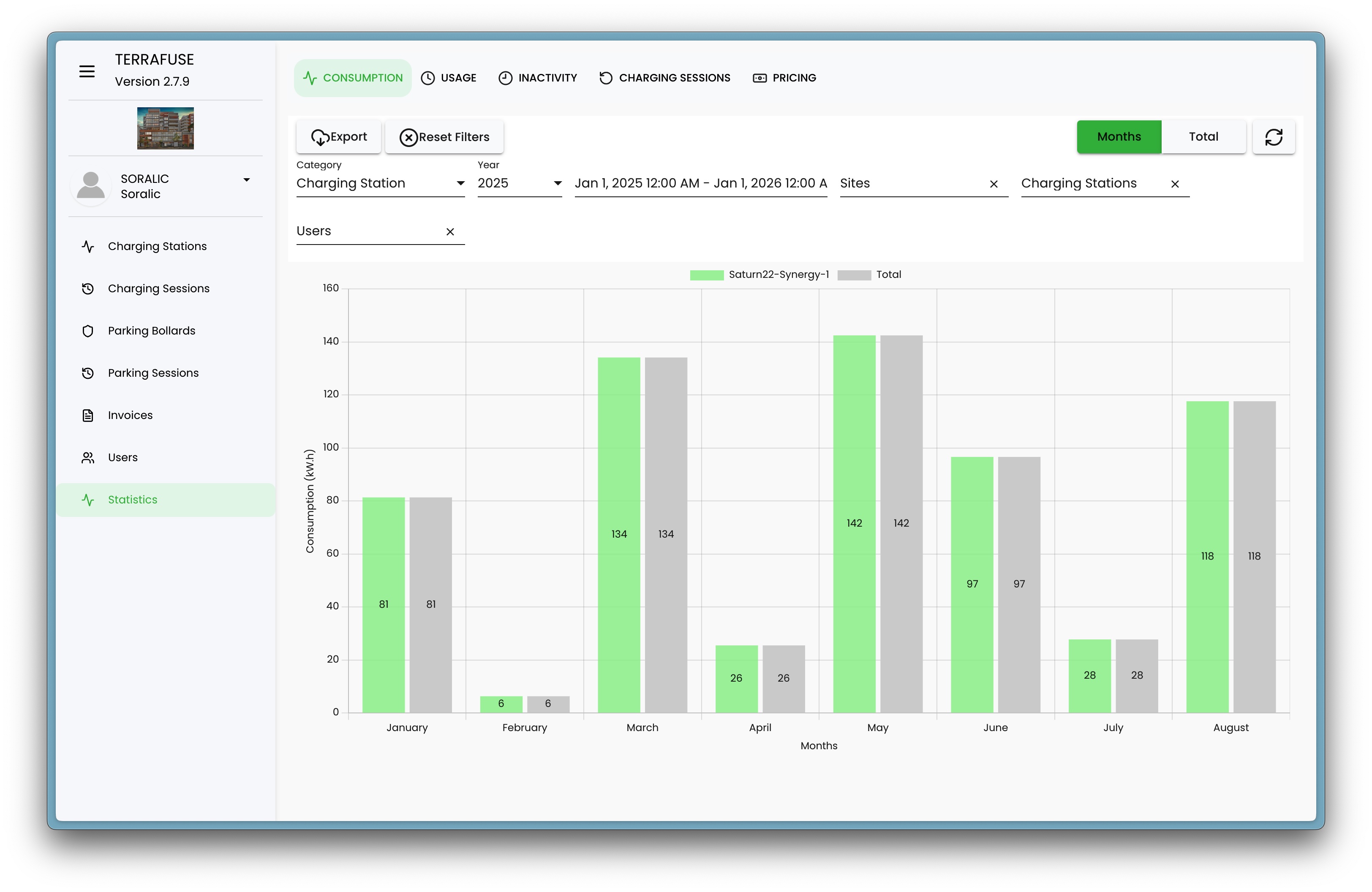

Shows the total electricity used for charging (measured in kilowatt-hours) shown in Figure 4.5.1.

Charging Consumption
Figure 4.5.1:Energy Consumption
  • High values mean cars needed more charging (either longer sessions or bigger batteries).
  • Useful for understanding electricity demand and predicting costs.

2. Usage (hours) ⏱ ​

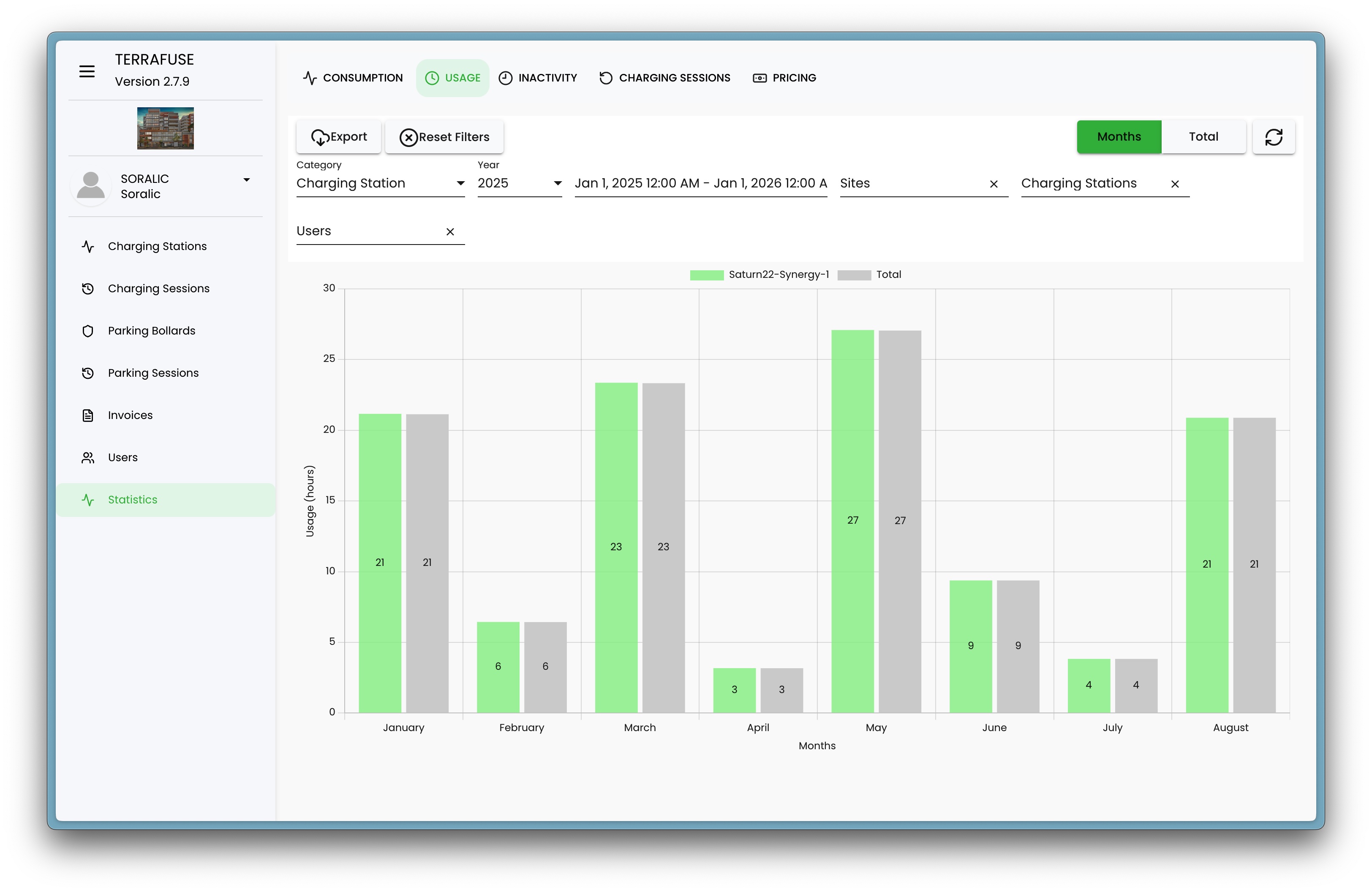

Shows the total hours cars were actively charging, shown in Figure 4.5.2.

Total Hours
Figure 4.5.2:Total Hours
  • High usage = station is in demand.
  • Helps you measure efficiency and plan for more capacity if needed.

3. Inactivity (hours) ​

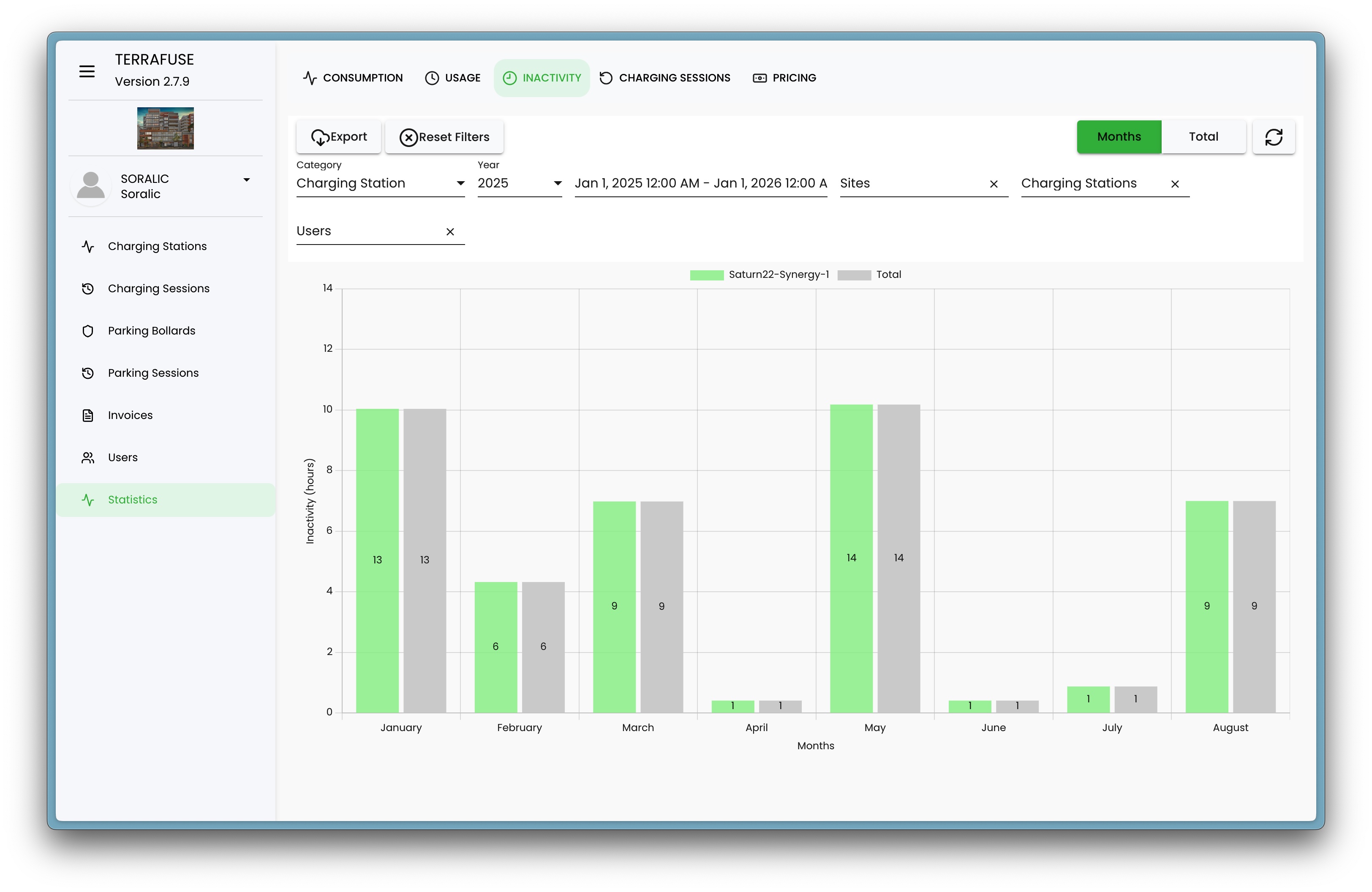

Shows how many hours the station was not being used, shown in Figure 4.5.3.

Inactivity
Figure 4.5.3:Inactivity
  • High inactivity = station was sitting idle.
  • Helps with planning maintenance or spotting underused stations.

4. Charging Sessions ​

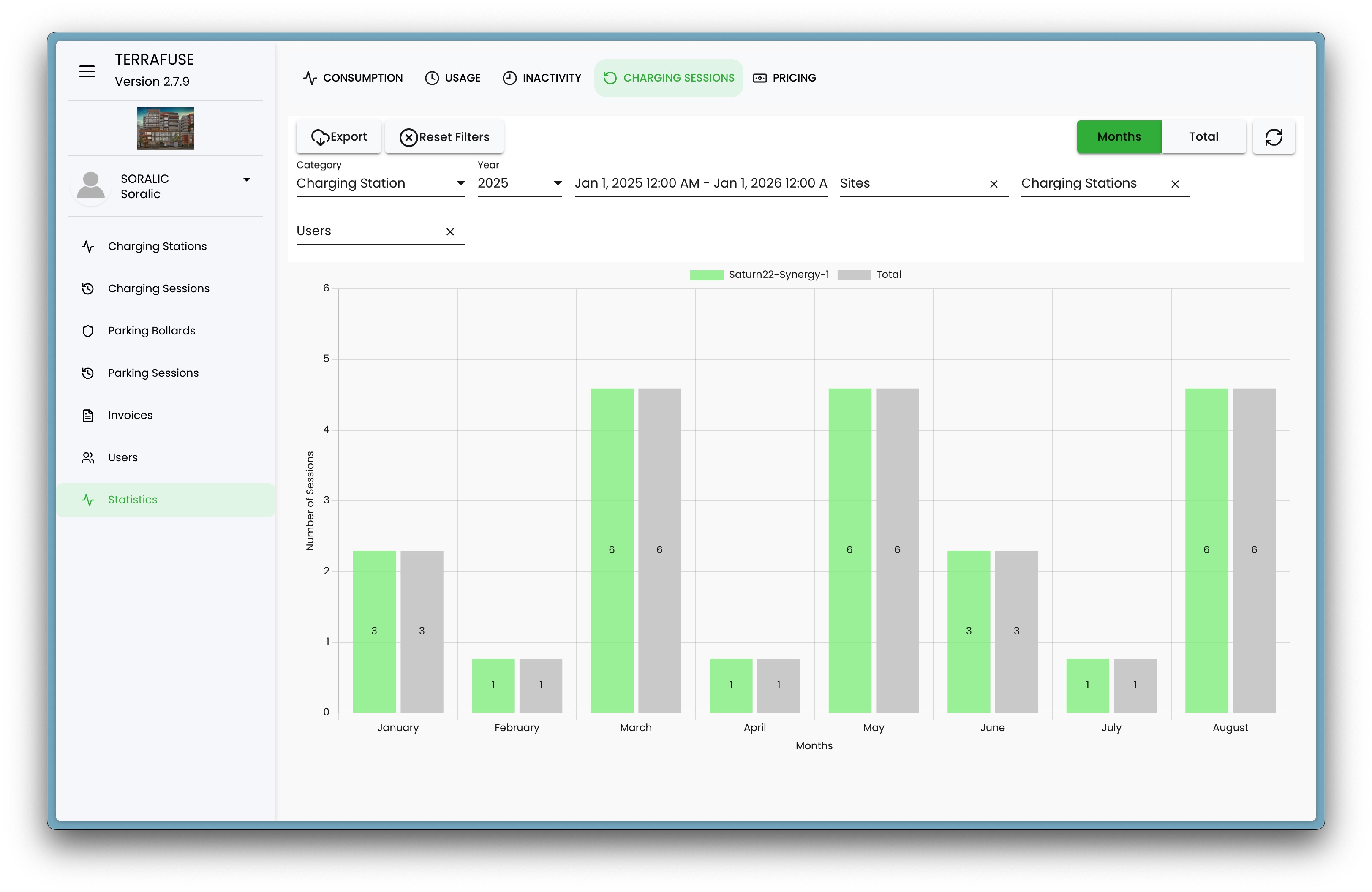

Shows how many times cars were plugged in to charge, shown in Figure 4.5.4.

Charging Sessions
Figure 4.5.4:Charging Sessions
  • Green bars = selected station
  • Gray bars = all stations combined
  • Taller bars mean more charging sessions that month.

This helps you see which months were busiest or quietest.

5. Pricing (Revenue) ​

Shows the money earned from charging sessions, in Figure 4.5.5.

Pricing
Figure 4.5.5:Charging Sessions
  • Helpful to track income each month.
  • You can easily see which months were more profitable.

How to Read the Charts ​

  • Green bars – Your selected charging station.
  • Gray bars – Total across all stations (for comparison).
  • Numbers on bars – Exact values (e.g., number of sessions or hours).
  • X-axis – Months of the year.
  • Y-axis – The measurement (hours, kWh, sessions, or dollars).

👉 Taller bars mean more activity. Comparing green and gray bars helps you see how one station performs against the network.

Filters ​

You can refine what you see using filters:

  • Date range – Choose which months or years to review.
  • Charging Station – Select a specific station or all stations.
  • Users – Focus on activity from specific residents or groups.

This makes it easy to zoom in on the data that matters most.
